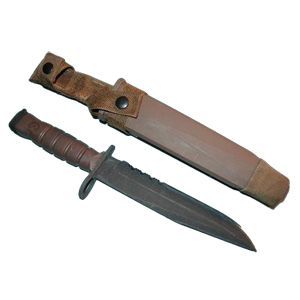

Ontario OKC3S USMC Marine Bayonet
Newest issue Marine corps Multi-Purpose combat bayonet for the M-16. Replaces the M9. Blade is made from .200" thick propietary carbon steel. 53-58 Rc. hardness. Phosphate non-reflective finish. Grooved Dynaflex ergonomically designed handle reduces hand fatigue. Scabbard has fitted internal stainless steel spring friction devise at throat to secure bayonet. Ceramic-coated aluminum honing rod is located on the back of scabbard. Equipped with two load bearing attaching straps with cross straps which allows variation of placement on the load bearing equipment. Made in USA by Ontario.
This knife is used/issued by the United States Marine Corps
Features include:
• .200" thick proprietary carbon steel
• 13.25" overall length - 8" blade length
• Hardness Rc 53-58
• 1.75 mission serration
• Zinc phosphate non- reflective finish
• Dynaflex®handle ergonomically grooved to reduce hand fatigue
• Manufactured with a low noise signature polyester elastomer
• Fitted internal stainless steel spring friction to secure bayonet
• Ceramic coated aluminum honing rod located on back of scabbard
• Equipped with two load bearing attaching straps with cross straps
Specifications
| National Stock Number (NSN) |
| 1095-01-506-3424 | |
| Edge Type | Combo |
| Lock Type | Fixed |
| Hardness | 53-58 HRC |
| Overall Length | 13.25 in (33.65 cm) |
| Weight | 14.0 oz (0.40 kg) |
| Blade Length | 8 in (20 cm) |
| Blade Material | 1095 Carbon Steel |
| Blade Grind | Flat |
| Blade Thickness | 0.2 in (0.5 cm) |
| Blade Color | Black |
| Blade Finish | Zinc Phosphate |
| Blade Stamp | Combat / OKC3S Ontario US |
| Handle Color | Brown |
| Handle Material | Modified Kraton |
| Handle Thickness | 1 in (2.5 cm) |
| Sheath Type | MOLLE Compatible |
| Sheath Color | Tan |
| Sheath Material | Glass Filled Nylon |
| Packaged Dimensions | 14.75 x 3 in x 2 in (37 cm x 8 cm x 2 cm) |
| Country of Origin | United States of America |
